Sand blast cabinet and Spray Booth

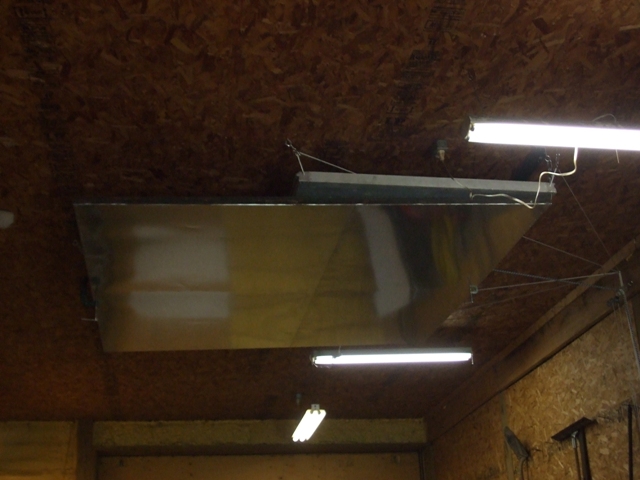

top of booth is light wt aluminum which will get some lights soon - Click to enlarge

.

the sides are collapsed and held with a c clamp - Click to enlarge

.

the main booth is lifted and ready to get out of the way - Click to enlarge

.

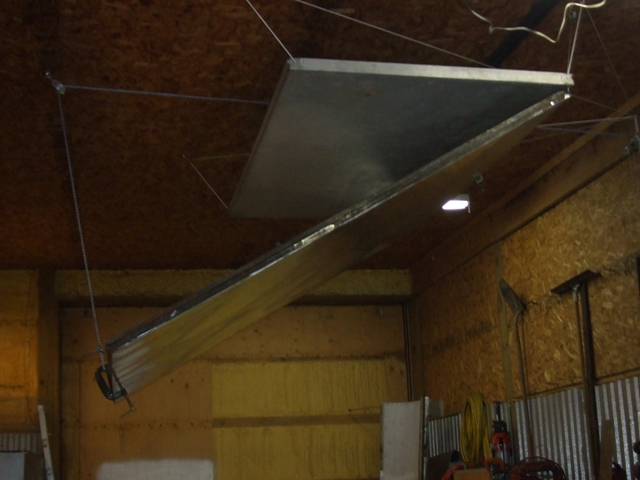

here is the main booth being lifted - Click to enlarge

.

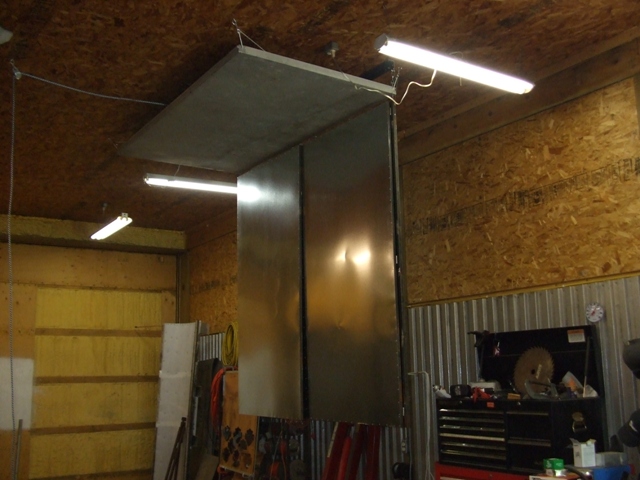

here it is 11 feet up and out of the way - Click to enlarge

.

Plenum attached and up on the roof. - Click to enlarge

.

6 furnace 20x25 furnace filters over all dimentions are 90" tall 90" wide and 48" deep - Click to enlarge

.

Plenum for the air exchage - Click to enlarge

.

a furnace squirel cage blower converted to run through a box - Click to enlarge

.

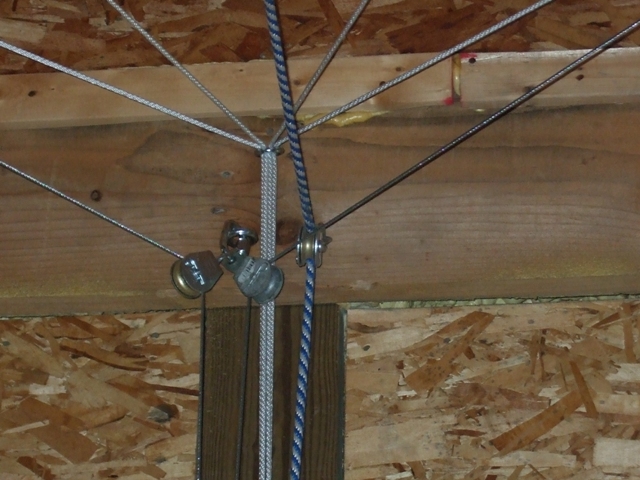

just a shot of the rigging to make it possible, I used a worm drive winch to raise the 3 walls folde - Click to enlarge

.

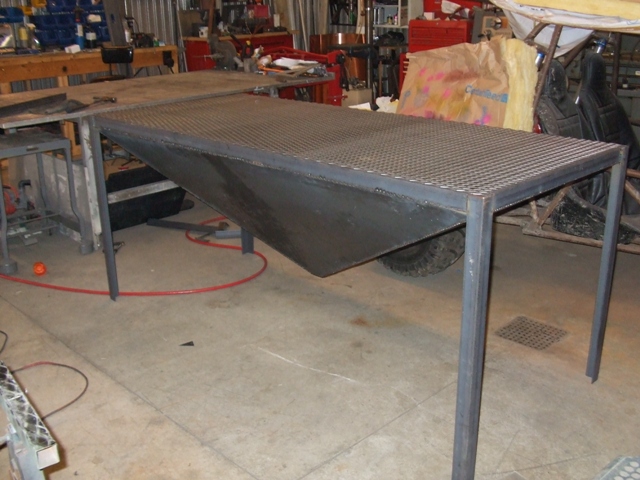

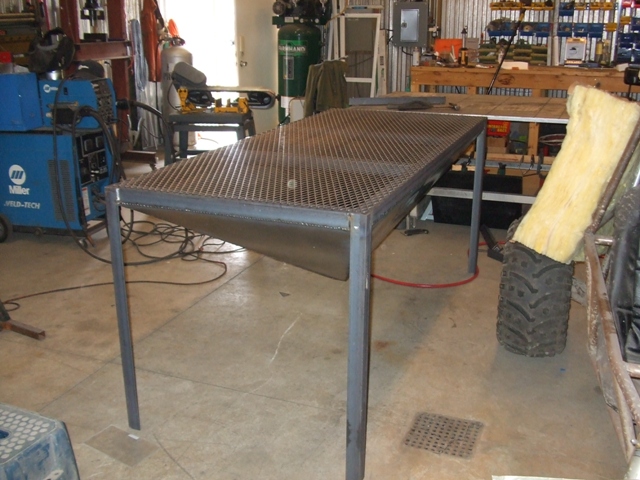

here is the base to the cabinet it is7 foot long and 3 feet wide - Click to enlarge

.

end shot the sheet metal is 16 guage the leg supports not installed yet - Click to enlarge

.

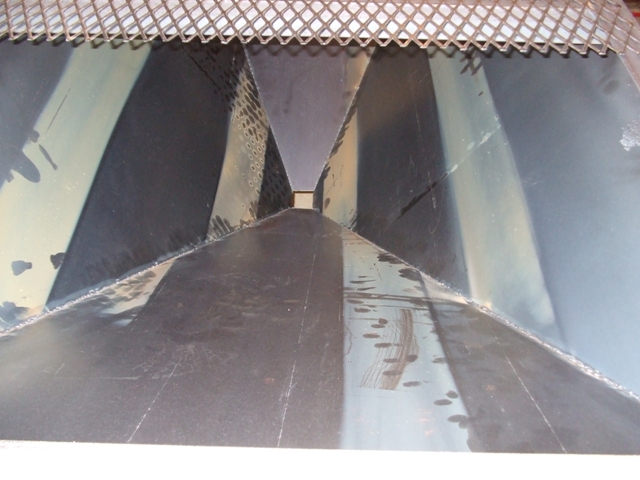

the inside sill have to install the media exchange trap door at the bottom - Click to enlarge

.

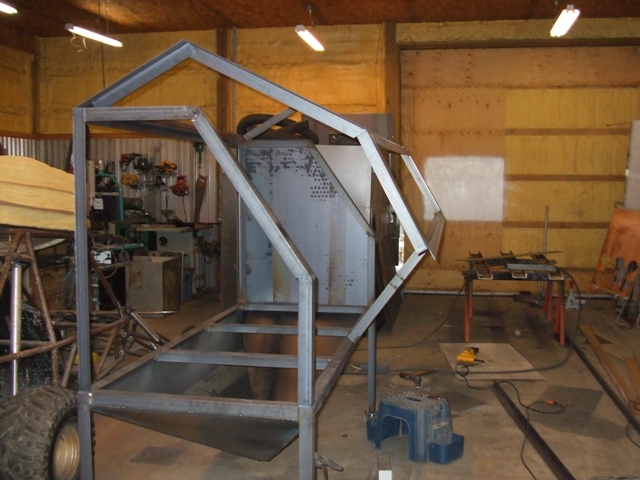

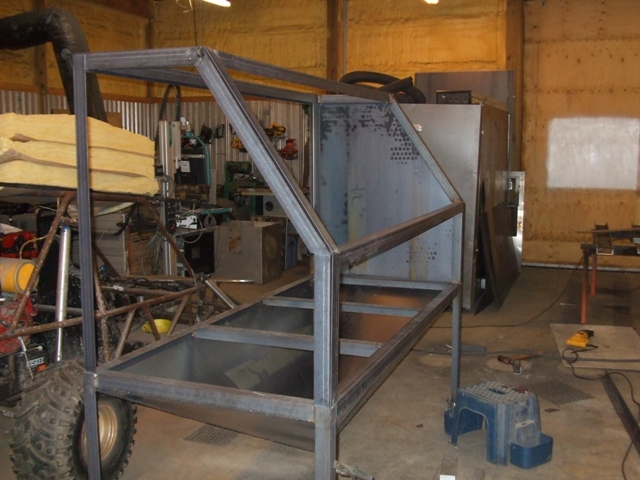

main structure done 2x2x1/4 angle for the legs and table and 2x2 x 1/8 angle for the upper structure - Click to enlarge

.

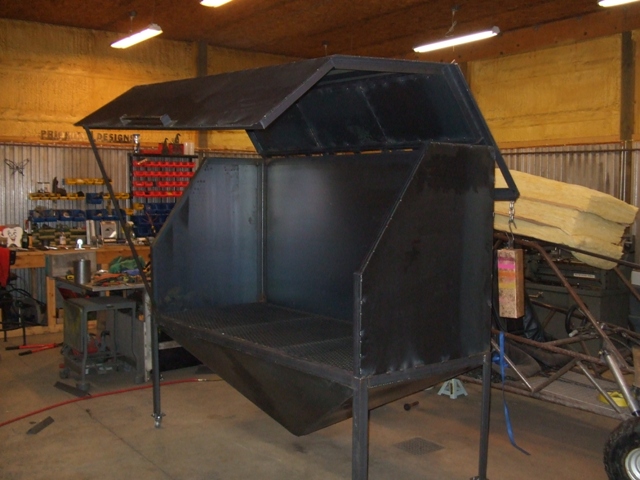

whole front will open to allow using the cherry picker for large parts - Click to enlarge

.

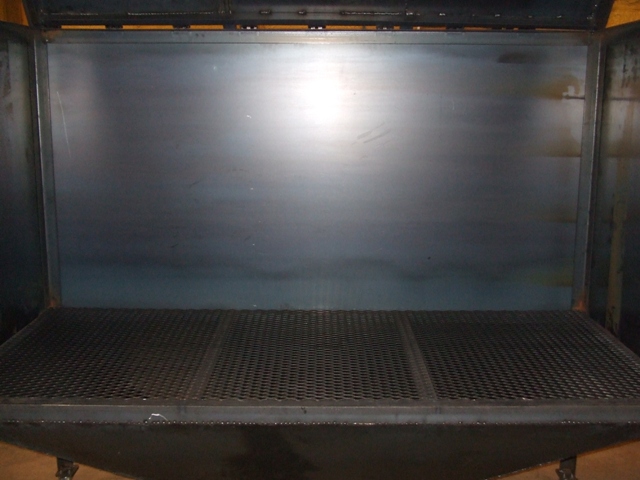

main cabinet done waiting for gloves and lights - Click to enlarge

.

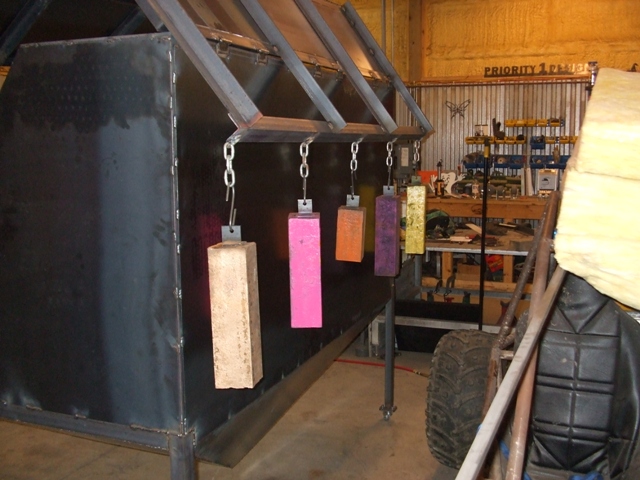

300 lbs of counter wt to open the clam style door color courtsy of my daughter - Click to enlarge

.

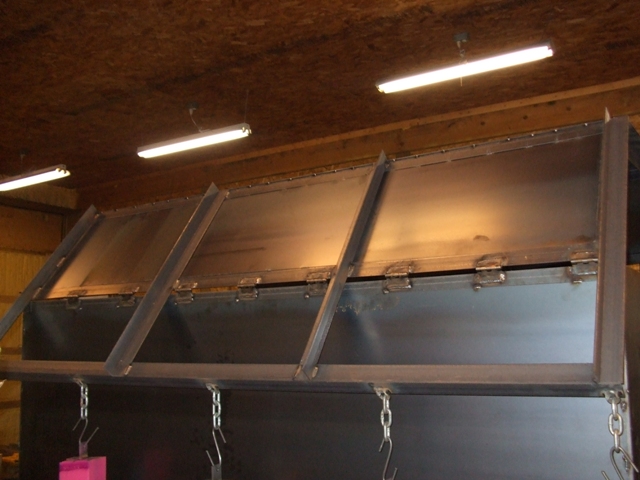

9 weld on hinges to support the wt - Click to enlarge

.

if all else fails I could use it to cook pigs - Click to enlarge

.

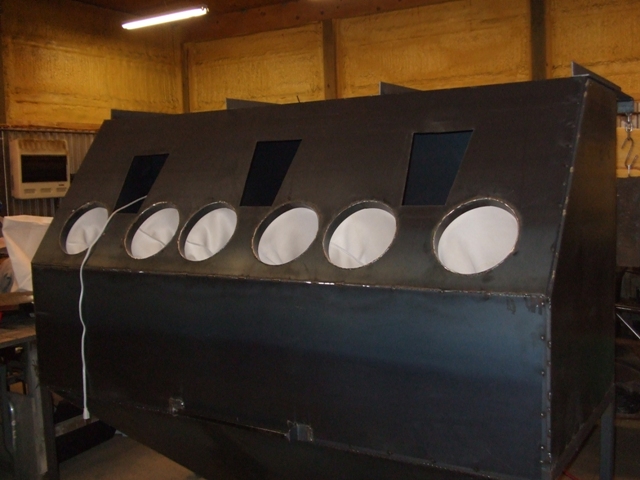

This thing is 7 feet long to bad my arms arn't multiple golves do the trick - Click to enlarge

.

lighting has been uptated to halogen lights - Click to enlarge

.

a pressure pot blaster works much better than a siphen blaster, dust collector by Grizzley tools - Click to enlarge

.

finished product works like a charm - Click to enlarge

.
